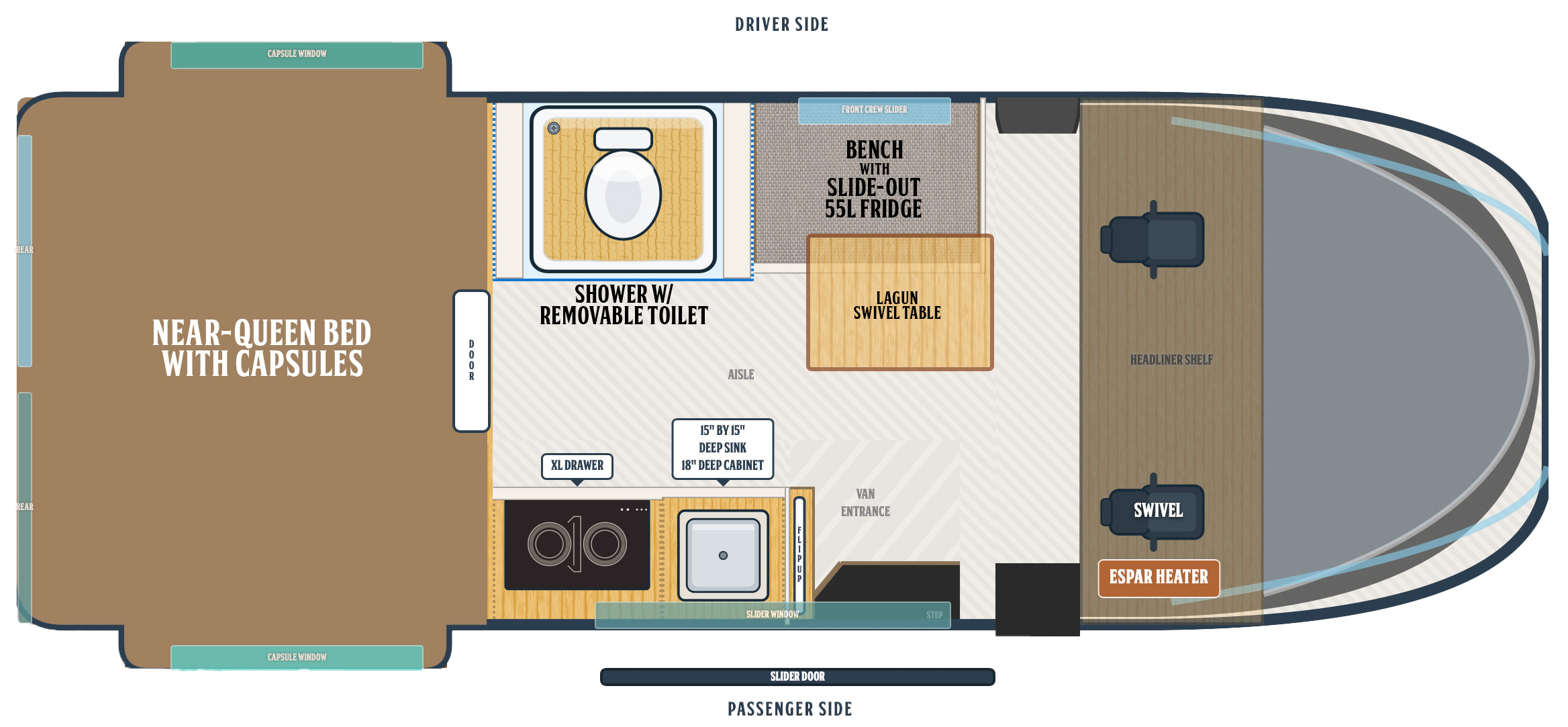

Zion Floorplan

The Zion Floorplan from Scenic Vans is another excellent choice for a well-designed and functional campervan, offering a range of features tailored for comfortable living on the road:

Seating Area:

Couples Bench and a Passenger swivel seat create multiple seating areas. Combined with the Lagun Swivel Table, guests can enjoy a meal eating next to eachother or across.
Moisture-wicking and high-quality cushions enhance seating comfort.

Galley:

Positioned on the driver side, the galley includes a sink, a two burner range, and a 65L fridge. To add additional prep space, the sink has a cutting board insert, and a custom cutting board fits over the range
One drawer is available for kitchen supplies, and under the sink is storage for larger items and visual access to the water tank to check levels.

Interior Design:

Shiplap-style walls made of high-quality Baltic birch plywood or Bamboo add an elegant touch.
Bamboo ceilings contribute to the overall aesthetic appeal.
Thoughtful trim work and transitions complete the interior design.

Bed and Storage:

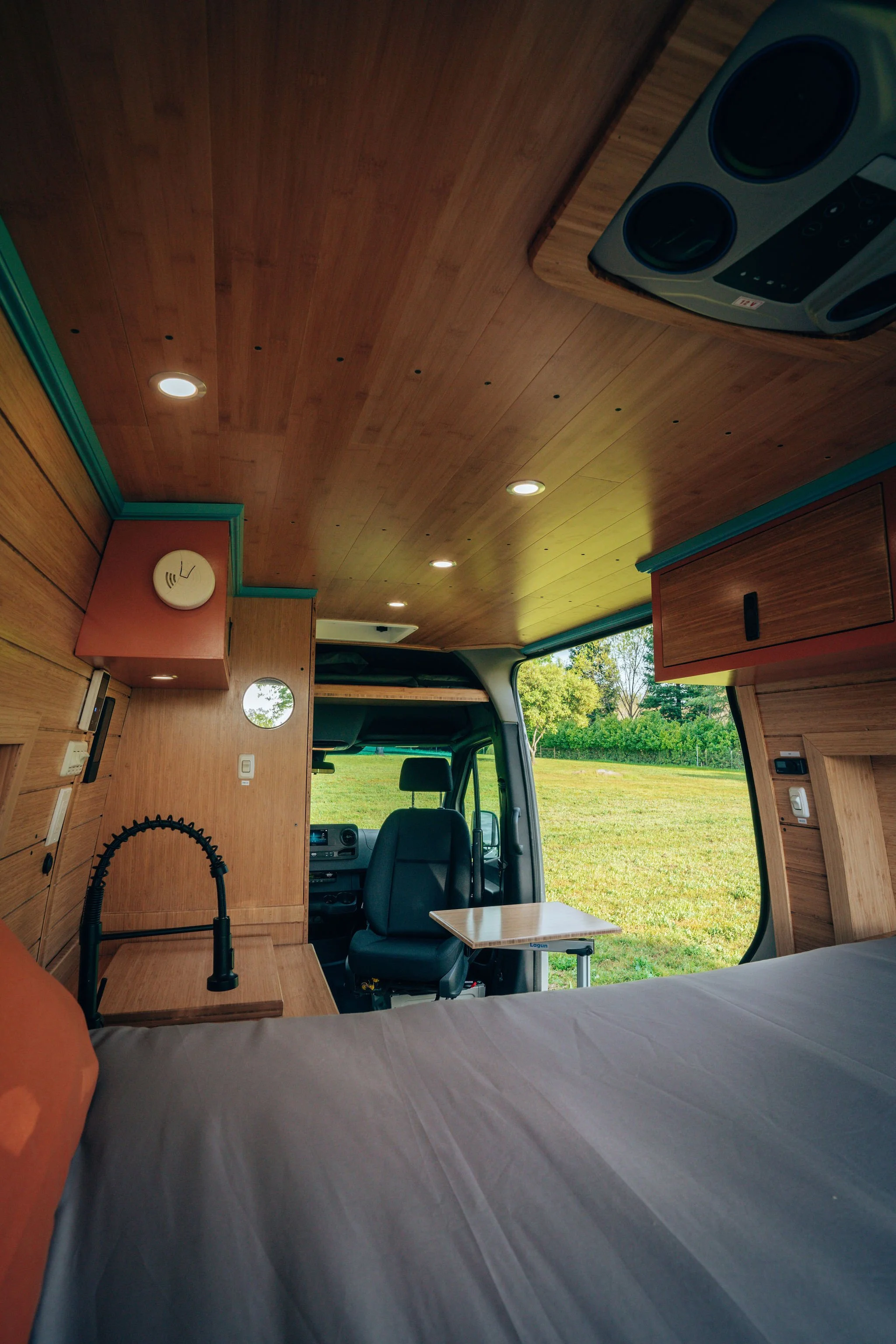

An elevated Full Bed is a focal point, with flares added on Sprinter and Transit models for a perpendicular orientation.
Two standard cabinets provide organized storage solutions over the bed.
A headliner shelf offers additional storage over the driver and passenger seats
Storage is conveniently located under the bed.

Utilities:

The electrical system is off-grid, featuring lithium batteries, solar, alternator charging, and shore power charging.
A 20-gallon fresh water tank and an 11-gallon grey water tank cater to water needs.

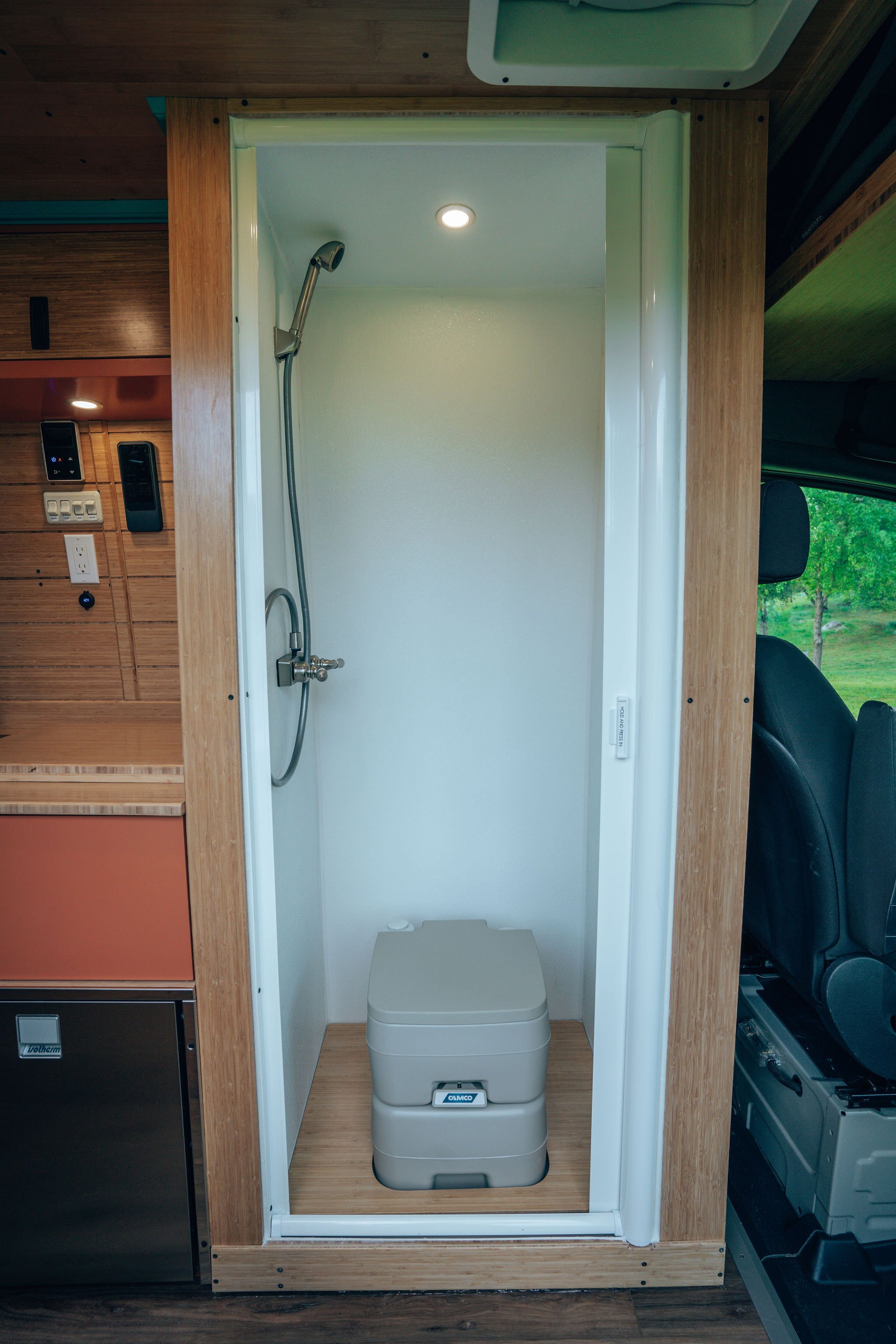

The Zion comes with a interior enclosed shower 24” by 27” as well as a toilet you remove when you take a shower.

Optional Add-ons:

Ventilation and cooling options include additional fans, a Fresair evaporative cooler, and a 12v DC air conditioner.
A high-efficiency diesel heater is available as an optional add-on.
Popular extras include bug screens, an awning, and a television.

If you need an interior shower

Off Grid Electrical System
- 200 AH Lithium Battery
- 2000 Watt Inverter
- 50 AMP Alternator Charging
- 200 Watts Solar
- 120V Charging Capability
- Battery Monitor
- 5 LED Lights In Center; 1 Under Cabinet Light; 2 Reading Lights
- 3 USB Charging Outlets
- 3 AC Outlets
- Professional Install
Water System
- 20 Gallon Fresh Water Tank
- 11 Gallon Grey Water Tank with Macerator Pump
- Electric Water Pump and Accumulator
Bones
- Kilmatt Sound Deadening
- 3M Thinsulate Insulation
- Baltic Birch or Bamboo Shiplap Walls
- Bamboo Ceiling
- Luxury Vinyl Plank Floor
- Transition Molding Throughout
Kitchen
- Custom Galley - One Drawer - Bamboo Countertop
- Deep Stainless Steel Sink with Matching Cutting Board Insert
- 12V Refridgerator
- Propane Range
Toilet/Shower
- Chemical Cassette Toilet
- Outdoor Shower Hose
- Interior 24” by 27” Shower
Seating and Dining
- Dual Swivel Seats
- Lagun Swivel Table (Dining and Extra Cooking Prep)
- Third Bench Seat Above Toilet
Bed
- Platform Full Bed
- Custom Mattress
Storage
- Under Bed Storage
- Storage in bench, cabinets, under bed, and headliner shelf
Windows
- Rear Windows
- Slider Window (Opens)
- Vanspeed Capsules / Flares by Bed
- Bunk Windows by Bed
- Window Coverings
Temperature Regulation
- Maxx Air Fan with Remote
- Fresair Evaporative Cooler or Air Conditioner (Popular Add-on)
Off Grid Electrical System
- 400-800 AH Lithium Battery Upgrade
- 3000 Watt Inverter Upgrade
- 400 Watts Solar Upgrade
- Additional Outlets
Heating
- Diesel / Gas Furnace
Cooling
- Additional Maxx Air Fan
- Fresair Evaporative Cooler (Requires Upgraded Electrical)
- 12V Efficient Air Conditioner (Requires Upgraded Electrical)
Seating and Kitchen:
- Aluminum Bench Seat with Lap Seat Belt
- Induction Cooktop (Requires Upgraded Electrical)
Toilets
- Composting Toilet
- Dry Flush Toilet
Comfort and Convenience
- Awning
- Bug Screens
- Running Boards
- Grab Handles
- Ladders
- Roof Rack
- Flip Down Table
- Television
If Ordering a Van From a Dealer $5000 Down to Get on the Build Schedule
20% Down at Vehicle Drop Off
40% Down at Electrical Rough In
Remaining Balance Due at Pickup
Ask about Financing!
Zion Conversions Start at $56,000.
Depending on Features, Most of are Under $60,000
- Sprinter 144
- Transit 148
- Promaster 159
